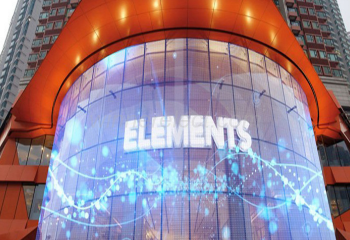

LED Curtain Display

  • Good heat dissipation, high transparency
  • Super slim and light only 9 kgs
  • More cost effective
  • Suit for outdoor indoor concerts

  • Product Description:

    A new type of transparent LED wall through technological breakthroughs, not only ensures between floors, glass facade lighting requirements and scope window lighting structure, and has the function of

    Key Features

    Power flow dual backup design
    High refresh, high grayscale
    Thin design, only 18kgs per square meter
    Easy installation, 90 degree assembly
    Ventilation design, ventilation and heat dissipation, strong wind resistance

    Mechanical Diagram


    Specification

    Item

    P6.944

    Pixel Size
    SMD 1921
    Pixel Pitch
    6.944mm
    Pixels

    36 x 72

    Pixel Density /m2

    20736/m2

    Brightness

    >3000nit

    Gray Scale Grade

    16 bit

    Drive Mode

    1/9

    Refresh Rate

    >3840Hz

    Viewing Angle

    140o

    Best Viewing Distance

    5-60m

    Brightness Adjusting Level

    Level256
    Brightness Adjusting Method Manau/Auto
    Cabinet Size (L x W)
    500 x 1000mm
    Cabinet Thickness
    Main body 30mm, Power box handle 70mm
    Resolution 72 x 144 dots
    Input Voltage 110-220V , 50-60Hz
    Material
    Die Casing Aluminum
    Max Power 400W/m2
    Average Power 160W/m2
    Cabinet Weight 9 kgs
    IP Grade IP65
    Working Temperature -20oC-+50oC, RH=40-90%
