P2.5 Indoor Flexible Module

  • High brightness /refresh rate
  • Super light&Slim
  • Quick install
  • Energy-saving, high luminance,low thermal, environment-friendly

  • Product Description:

    LED flexible module, it comes with the slim and lightweight magnetic module can stick to customized frame and fit to any construction design. It needs very little space for wire and mounting.The slim

    Key Features

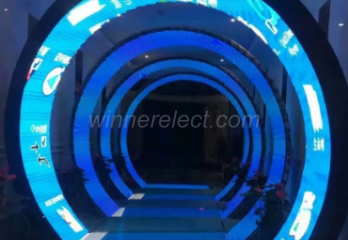

    Extremely flexible could be made as any creative shapes for any installation
    Super light and slim, thickness save labour costs and shipping costs
    Quick install assembling by module directly no steel cabinet design
    Using high quality raw materials only
    Magnet and screw connecting available

    Mechanical Diagram



    Specification

    Item P4 SMD Full color module
    Pixel Pitch
    4mm
    Resolution
    32x64 Dots
    Lamp Configuration
    1R+1G+1B (SMD1921 black lamp)
    Brightness 5,000 cd/m²
    Viewing Angle (H)140o (V)120o
    Module Size 240 x 120mm
    Grey Level 14 Bits
    The Maximum Power Consumption
    480 W/m2
    Best Viewing Distance
    3-60m
    Driving IC
    MB15124
    Power Voltage 100~240Vac; 50~60 Hz
    Physical Density
    111,111 /m²
    Driving Mode
    1/24 scans
    Life Time (from 100%~0%)
    100,000 hrs
    Working Temperature
    -20°C ~ +60°C
    Operating Humidity
    10% ~ 95% RH
    Refresh Rate
    1920 Hz/s
