P7.62 Indoor Tri Color 1026x294mm

  • High bright SMD LEDS
  • Thinness Display
  • Support multi-language
  • Programmed by USB download

  • Product Description:

    Key Features

    Pixel Pitch: 7.62mm
    Pixel Configuration: SMD
    Brightness: Over 550cd/sqm
    Refresh Rate: over300Hz
    Drive Mode: 1/16 Scan

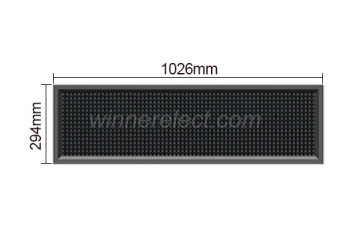

    Mechanical Diagram


    Specification

    Item P7.62 Indoor Tri Color Display 1026x294mm
    Pitch
    P7.62
    Resolution
    128 x 32 dots
    The Screen Size (W x H) 1026 x 294 mm
    The Display Dimension (W x H)      976 x 244 mm
    Cabinet Material
    Aluminum Frame
    Cabinet Weight
    6kgs
    Brightness >550cd/sqm
    View Angle
    110(Horizontal), 60(Vertical)
    Viewing Distance 9M
    Power Consumption (Max)
    28W/H
    Power Consumption (Average)
    8W/H
    Display Function Text, Graphics
    Control System Sending Card, Receiving Card, Receiving HUB
    Language All language
    Communication Type 3G, WIFI GPRS, Net Cable, USB...ETC
    PC Operating System
    Win 10, Win 7 and XP
