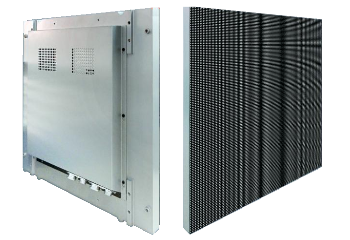

Indoor & Rental Display

  • Lightweight Thin and Safe LED Displays with High-definition, Applicable to All weather for Leasing Users
  • Fan-less design, saving energy and reducing power consumption
  • Flexible assembling structure, easy to use
  • Easy to assemble and maintain

    • Product Description:

    This product adopts 3-in-1 SMD technology, brightness and color calibration technique and 16 bit processing depth design, featuring high- standard consistence of brightness and color, which ensure uni

    Key Features

    • Light weight, thin and slim, easy to carry and install
    • Natural heat dissipation for the whole LED panel
    • The main structure is constructed by Aluminum which has high coefficient of heat conductivity
    • No fans and air-conditional system are required for cooling
    • High refresh rate and low power consumption
    • Fast clamp lock helps fast installation, small seam between adjacent cabinets and high connection accuracy
    • The LED panel is equipped with PSU but no fans , so no noise occurred when running
    • Integrated design for the cabinet

    Mechanical Diagram



    Specification

    Item

    P2.5

    P3

    P4

    P6

    Pixel Configuration

    SMD1515

    SMD2121

    SMD2121

    SMD3528

    Arrangement

    1R1G1B

    1R1G1B

    1R1G1B

    1R1G1B

    Brand

    Epistar

    Epistar

    Epistar

    Epistar

    Pixel Pitch

    2.5mm

    3mm

    4mm

    6mm

    Module Size

    160 x 80mm

    192 x 96mm

    128 x 128mm

    192 x 192mm

    Module Resolution

    64 x 32 dots

    64 x 32 dots

    32 x 32 dots

    32 x 32 dots

    Pixel Density

    160000 dots/m²

    111111 dot/m²

    62500 dot/m²

    27777 dot/m²

    Cabinet Resolution

    256 x 256 dots

    192 x 192 dots

    128 x 128 dots

    96 x 96 dots

    Cabinet Size (W) x (H)

    640 x 640 /mm

    576 x 576 /mm

    512 x 512 /mm

    576 x 576 /mm

    Brightness

    > 2000cd/m²

    > 1800cd/m²

    >2000cd/m²

    >2000cd/m²

    Viewing Distance

    5m

    6m

    7m

    9m

    Drive Mode

    1/32 scan

    1/16 scan

    1/16 scan

    1/16 scan

    Power Consumption (Max)

    1300 w/m²

    1200 w/m²

    1000 w/m²

    800 w/m²

    Power Consumption (Avg)

    400 w/m²

    300 w/m²

    300 w/m²

    240 w/m²

    Frame Frequency

    no less than 60 frame/sec

    Input Voltage

    AC110-220V, 50/60Ha

    Output Voltage

    DC5V,40A/60A/80A

    Grey Scale Levels

    16 bit

    MTBF

    5000 hours

    Viewing Angle

    140∘

    Life Span

    100,000 hours

    Refresh Rate

    >1000Hz

    Display Function

    Text, Graphics, Video

    Protection Level (Front/Back)

    IP31/IP54

    Working Temperature

    -15℃ - 50℃

    Operating Humidity

    15 - 85%
